SpeedAlert Radar Message Signs
Multipurpose portable signs combine radar feedback and variable messaging to help alert and direct drivers through or around your road work site. Keep traffic safe around highway construction projects.

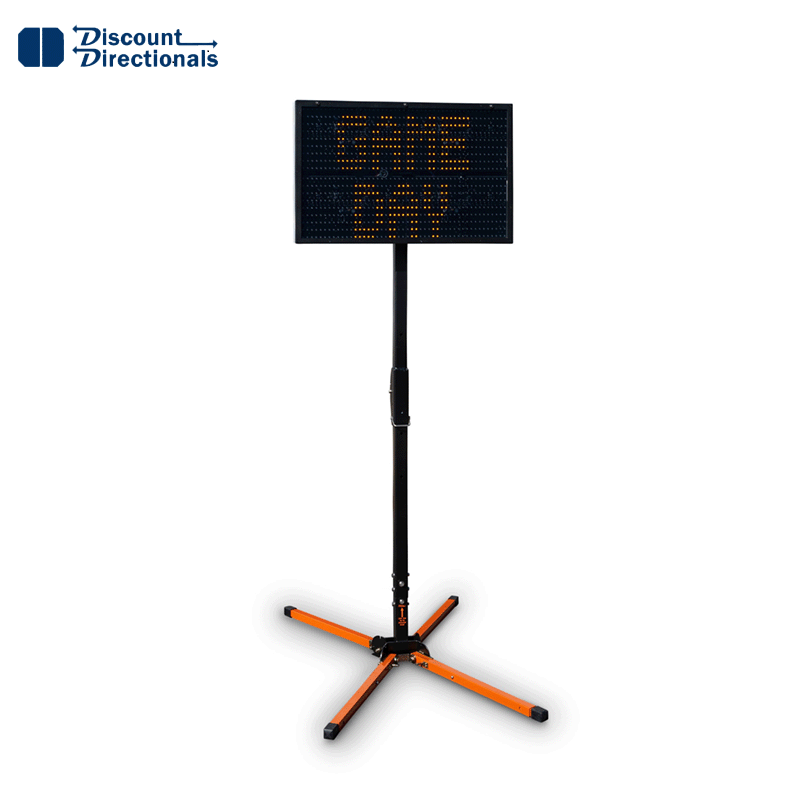

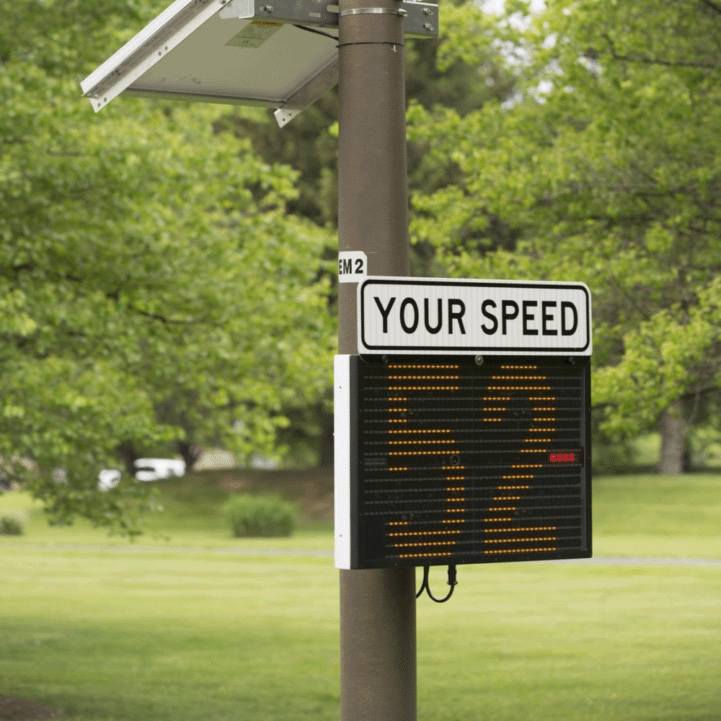

SpeedAlert 18 Radar Message Sign:
- SpeedAlert 18 (SA18): 18″x28″ full matrix (SpeedAlert 24 (SA24) 24″ x 60″ full matrix also available – see separate SpeedAlert 24 Specs Below)
- Size and weight without battery
- 30″x20″x2.74″, 29 lbs.
- Full matrix display
- Universal Mounting System: Attach to pole, trailer or vehicle hitch mount
- Integral camera for awareness and alert triggered images: 640×480 pixel daylight images
- Internal K band radar with adjustable sensitivity
- Meets MUTCD Specifications SpeedAlert Operation Modes
- Message Mode: Display one message, up to six (6) screens
- All Messages: Sequence all messages in sign memory
- Speed Display: Display approaching vehicle’s speed
- Dependent Message: Display targeted messages based upon vehicle’s speed, up to six (6) screens per message
- Changeable speed limit sign
- Stealth or Display Off: Collect traffic speed and volume data with no LED display
- Schedule: Change message and/or mode up to 13 times/day
- Collect vehicle volume by speed and time data in all modes
- Sign returns to last mode and configuration when power applied SpeedAlert Programming Methods On-Board Programming (standard on all units)
- Select operation mode
- Set Speed Limit
- Select message from sign’s memory

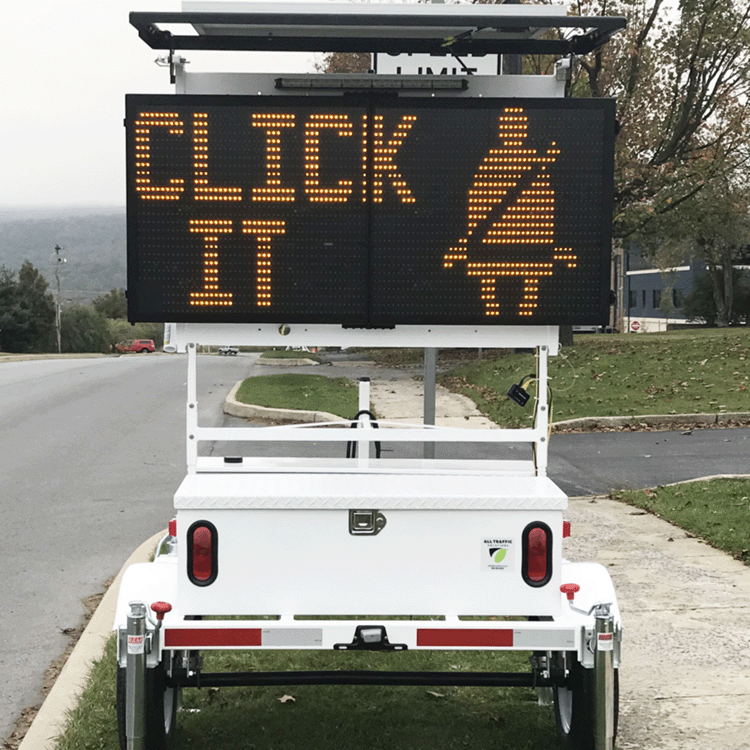

SpeedAlert 24 Radar Message Sign:
- SpeedAlert 24 (SA24): 24″ x 60″ full matrix
- Folds to fit in police cruiser trunk, SUV. 43lbs
- Size, weight without battery:
- Open: 28″ x 60″ x 15/8″
- Folded Dimensions: 28″ x 30″ x 3¼″
- Full matrix display
- Universal mounting system: attach to pole, trailer or vehicle hitch mount
- Integral camera for awareness and alert triggered images 640×480 daylight images
- Internal K band radar with adjustable sensitivity
- Power saving circuitry and automatic dimming for ambient light conditions with adjustable dimming range and manual display brightness override
- Meets MUTCD specifications SpeedAlert Operation Modes
- Message Mode: Display one message, up to six (6) screens
- All Messages: Sequence all messages in sign memory
- Speed Display: Display approaching vehicle’s speed with ″YOUR SPEED″ LED message
- Dependent Message: Display targeted messages based upon approaching vehicle’s speed
- Changeable speed limit sign
- StealthorDisplayOff: Collect traffic speed and volume data with no display
- Schedule: Change message and/or mode up to 13 times/day
- Collect vehicle volume by speed and time data in all modes
- Sign returns to last configuration when power applied SpeedAlert Messages
- SA24: 1-3 line messages
- 1 line: 24″ (H) x 12.5″ (W) characters, four per line
- 2 lines: 10¼″ (H) x 5.75″ (W) characters, eight (8) per line
- 3 lines: 7″ (H) x 4″ (W) characters, 12 per line о2 lines: (1) 7″ char, 12/line, (1) 10¼″ char, 8/line
- Up to six (6) screens per message
- Full graphics capability, each LED individually controllable
- Variable display time, flash and reverse rates for each screen
- Scroll through 25 user defined onboard messages using selector buttons built into sign, no training necessary
- Ability to sequence messages for up to 144 screen animation
- Message power efficiency calculator in software
- Actual sign preview and unlimited message storage using TraffiCloudTM Web-based Remote Management Service, ATS PC Sign Manager or ATS Android app
- Messages on sign retained when power removed
- Sign returns to last message when power applied
TraffiCloudTM Web-based Remote Management Services
Remote Management using integral cell modem (See TraffiCloud specification for more information):
- Turnkey system. Remote connectivity functional upon ship. Unit connects to TraffiCloud Service when sign powered
- Fully hosted web-based management system
- Internet connected computer with browser provides anywhere access on all connected devices with browser
- No IT involvement or support necessary. System bypasses customer network eliminating access issues
- Cellular provided by ATS, no separate cellular charges
- Hosted database requires no setup or maintenance by customer
Need cones or delineators to go with your messaging signs? See our full traffic, parking and highway safety section or download our traffic catalog.
