Description

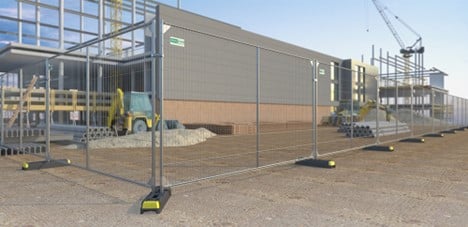

Broadfence’s Anticlimb Standard Fence Panel is strong and durable, yet lightweight and easy to install. These 11’ 4” long and 6’ 7” high fence panels are perfect for large construction sites, enclosing hazards, concert and festival crowd control, event perimeters, environmental control, and general road and civil works.
Each panel comes with one foot and one coupler.
Additional information
| Panel Size | 6′ 7″ High x 11′ 4″ Long |
|---|---|
| Foot Dimensions | 7.5” wide x 30” long x 4.5″ high |
| Mesh Opening | 1.7” wide x 9.5” high |
| Panel Weight | 30 Lbs. |
| Foot Weight | 33 Lbs. |
| Vertical Posts Gauge | 19 gauge (1.5″ diameter) |
| Horizontal Posts Gauge | 19 gauge (1″ diameter) |
| Fence Mesh Gauge | 13 gauge |
| Quantity Per Lift | 90 |
| Surface Protection | Galvanized |
Privacy Screening
Add privacy to your site with our new Privacy Screening option. Available only on our Anticlimb Panels.
Additional information
| Roll Size for 6′ Fence | 5′ 8″ x 50′ |
|---|---|
| Roll Size for 8′ Fence | 7′ 8″ x 50′ |
| Opacity/Shade Percentage | 85% |
| Metal Grommets | 24″ O.C. on all four sides |
| Fabric/Mesh Design | Lock-stitch knitted High Density Polyethylene |
| Filament Strength | 50 lbs. per ft. |
| Material Break Strength | 500 lbs. per ft. |
| Material Weight | 145 GSM (4.28 oz./yd²) |
| Crystalline Melting Point | 133 Deg. C |
| Composition of UV Inhibitor | 1.5% Amplas CM111821/1.5% Equaster CM106000 |
| Flammability Point | 364 Deg. C
|
Anticlimb Standard & Premium Pedestrian Gate
Anticlimb Standard & Premium Pedestrian Gate Round Top Pre-Galvanized. Accessory available only for the Standard and Premium Anticlimb panels.
Please note gate unit includes all necessary hardware for connecting to panels.
Additional information
| Gate Size | 6′ high x 3’9″ long |
|---|---|
| Foot Dimensions | 7.5″ wide x 30″ long x 4.5″ high |
| Mesh Opening | 1.7″ wide x 9.5″ high |
| Post Diameter | 1.57″ |
| Panel Weight | 32 lbs. |
| Foot Weight | 33 lbs. |
| Surface Protection | Galvanized
|
Standard Fence Stabilizer
Popular economical solution connected to the fence using the existing coupler and can be anchor bolted to the other end.
Often purchased with the Standard Stabilizer Pin Heavy Duty.
Additional information
| Stabilizer Length | 70″ |
|---|---|
| Length from Panel to Plate | 39″ |
| Height from Ground to Top of Stabilizer | 59″ |
| Base Plate Dimensions | 6″ Wide x 6″ Long |
| Stabilizer Weight | 5.5lbs |
| Surface Protection | Pre-galvanized |
Standard Stabilizer Pin Heavy Duty
Additional information
| Pin Dimensions | 3.5″ wide x 17″ long x 0.5″ diameter |
|---|---|
| Pin Weight | 1lb |
| Surface Protection | Pre-galvanized |
Windbreak Stabilizer Tray
Additional information
| Tray Dimensions | 20″ wide x 18″ long x 1.8″ high |
|---|---|
| Tray Weight | 6lbs |
| Surface Protection | Pre-galvanized |
